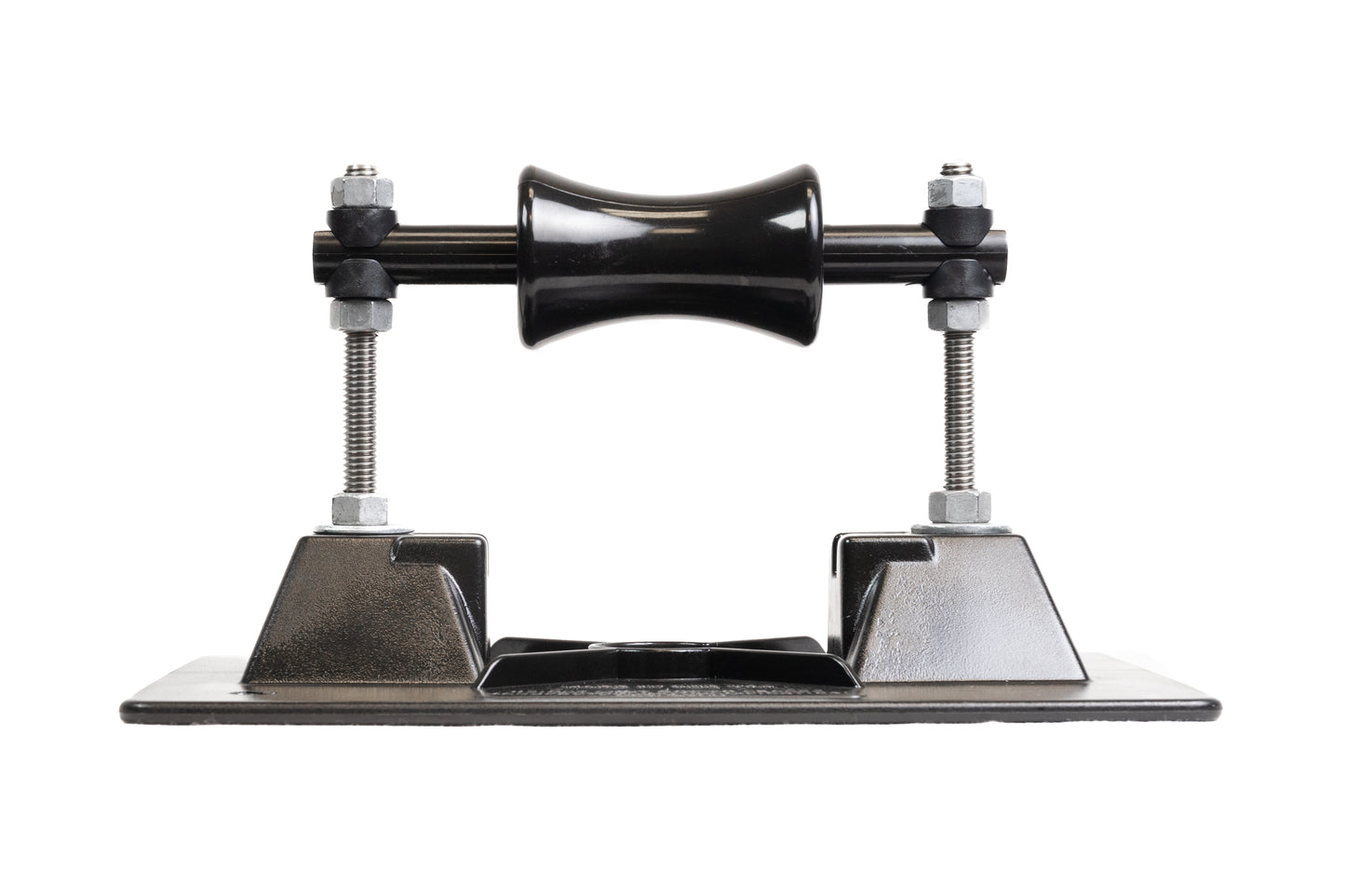

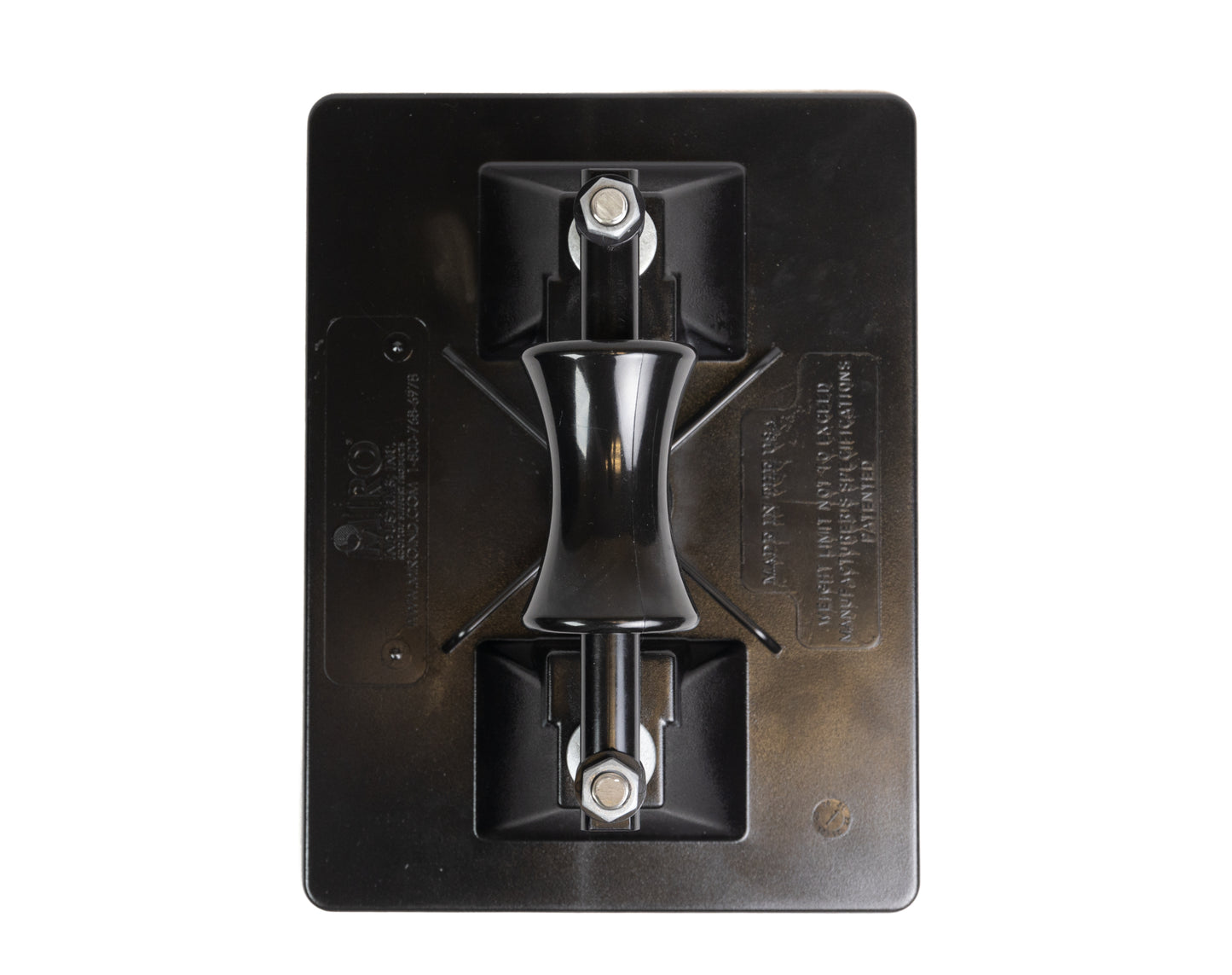

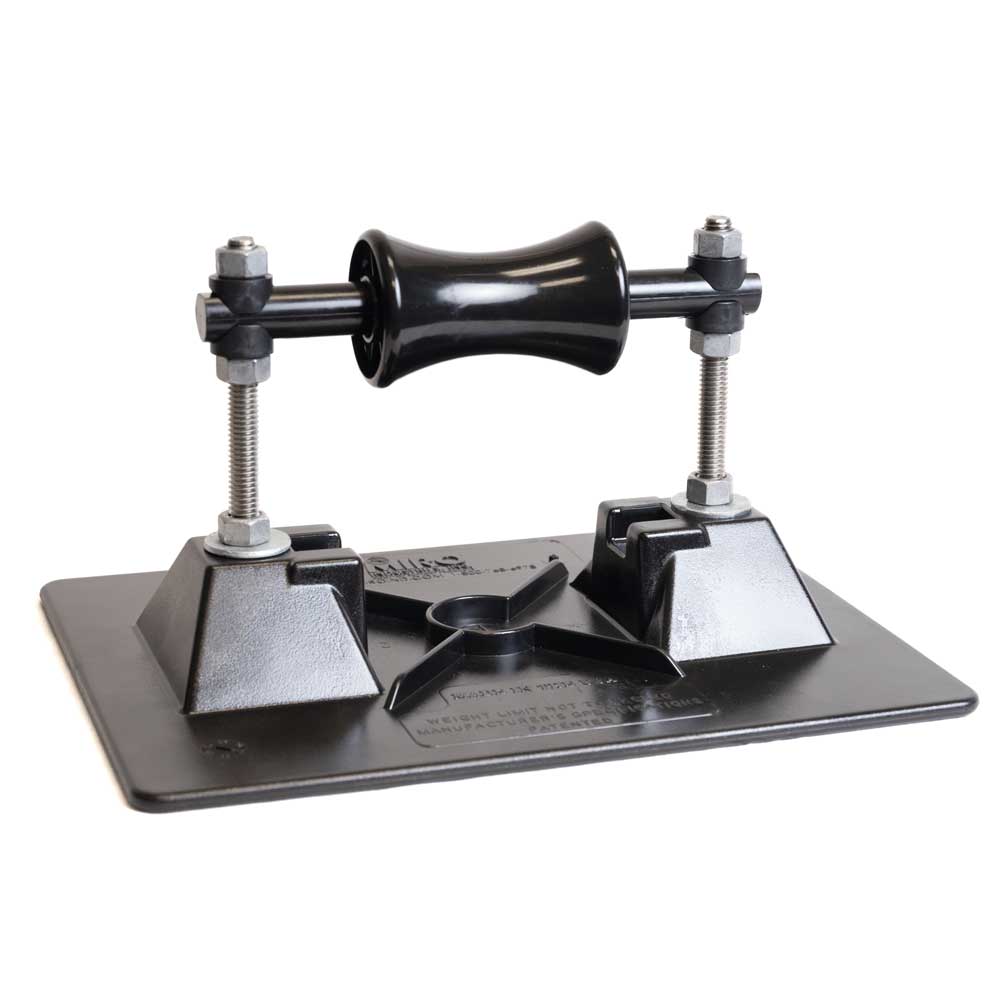

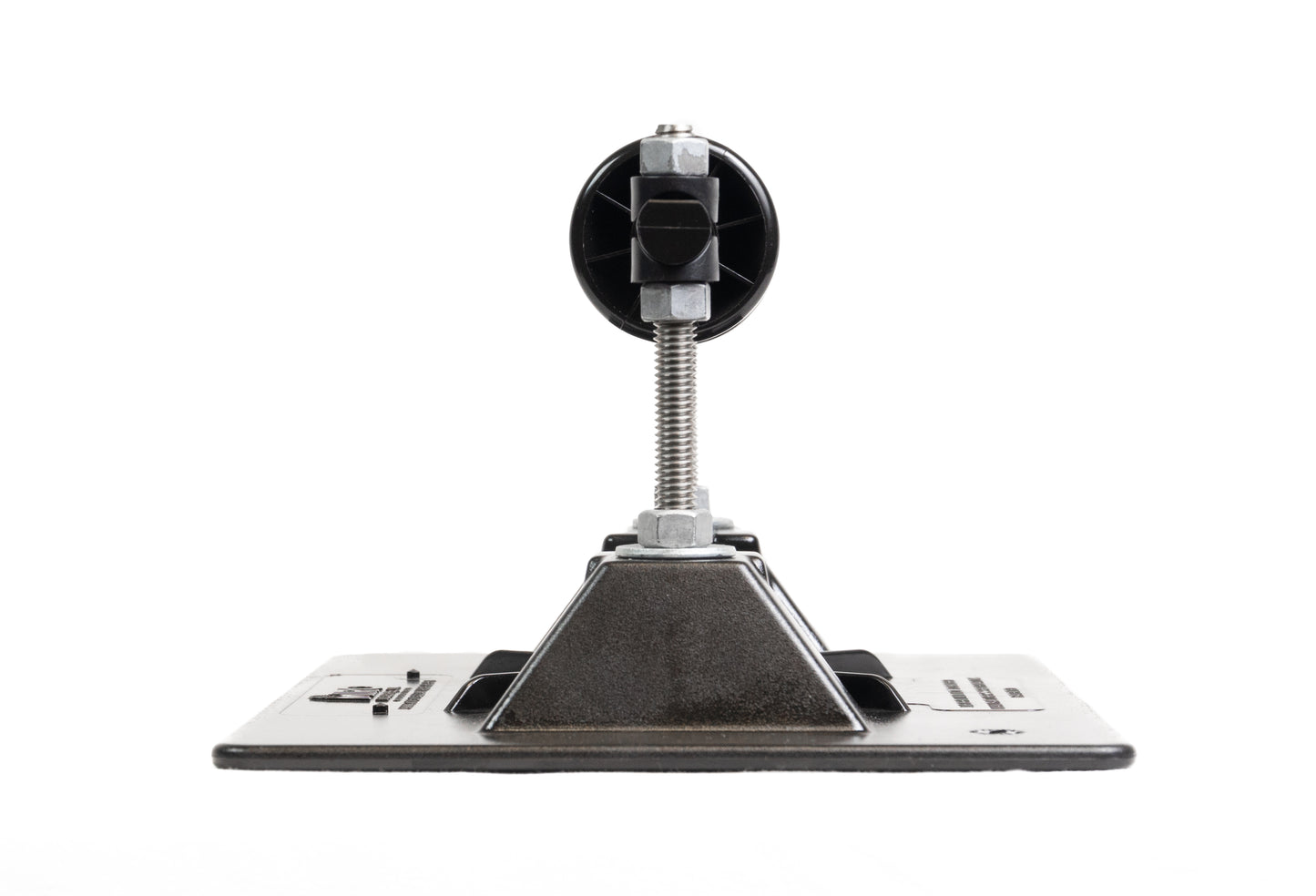

The MIRO 2-RAH-5 is a roller-bearing pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin axle and roller.
USE
For pipes up to 2.5" OD
Rooftop gas pipes
Rooftop mechanical pipes
Rooftop electrical conduit
Key information:
Optimally designed for a 2" Pipe
Maximum pipe OD (with insulation) is 2-1/2".
Adjustable from the factory set height of 5" down to a minimum height of 3-5/8".
Maximum load is 140 lbs.(3.0 PSI.) Make certain each pipe support is properly elevated to evenly distribute weight at all pipe support locations.
Unit Weight: 1.35 LBS.
12 per case, 17 lbs. per case.
Recommended spacing is not to exceed 10 feet centers depending upon the load.
