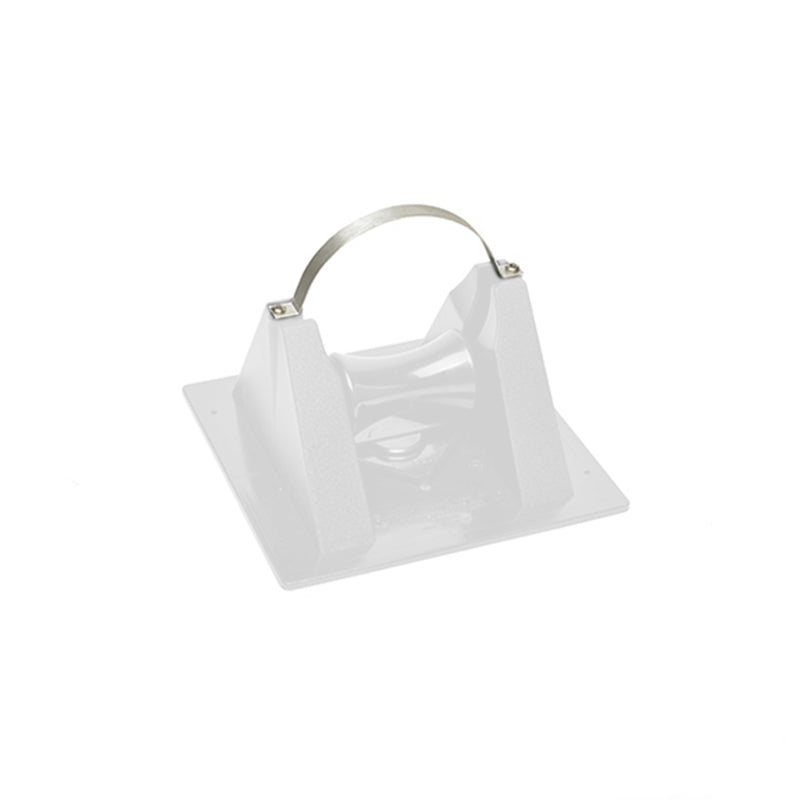

3-R-2 Pipe Guide

MIRO Industries pipe guides are designed to attach to MIRO Industries pipe supports to prevent the pipe from being displaced from the pipe stand. All pipe guides will ship separately and need to be installed on-site. It is important to note that pipe guides should not be rigidly attached to the actual pipe that is placed in the pipe stand, thus allowing for expansion and contraction to occur within the pipe stand.

The strap material is a .040 aluminum 5052 allow temper H32 ASTM B-209-01. Included with 1.5 and 3-R pipe guides are #8 stainless steel screws that are to be used to mount through pre-punched holds in the guides down into the polycarbonate pipe supports. This can be done by using a Phillips head screwdriver.
