3-RAH-12 Rooftop Pipe Support with Roller

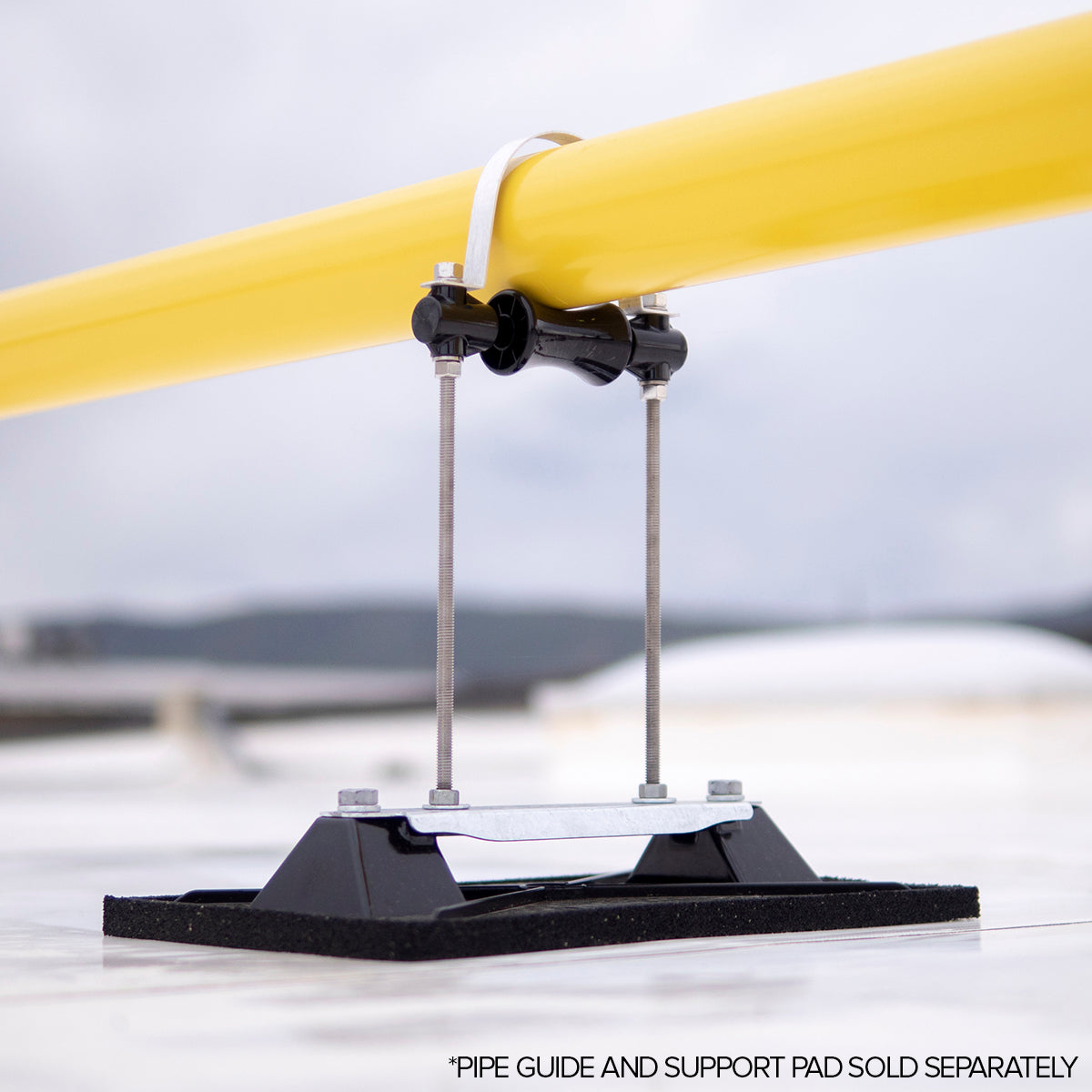

Roller-Bearing Pipe Support

The roller-bearing pipe support is engineered for rooftop gas pipes, electrical conduits, solar piping, and mechanical piping, protecting roof membranes with a unique thermal expansion design.

Key Features:

• Thermal Protection: Self-lubricating polycarbonate roller rod absorbs pipe expansion and contraction, preventing roof damage.

• Versatile Compatibility: Supports pipes up to 4.5" OD, optimized for 3" pipes.

• Durable Construction: UV-resistant polycarbonate base, stainless steel all-thread, and metal parts for corrosion resistance.

• Adjustable & Non-Penetrating: Height adjustable up to 12" above the roof, no roof penetration required.

• Made in the USA: Backed by a 20-year manufacturer warranty.

Specifications:

• Material: Polycarbonate base and roller, stainless steel metal parts.

• Max Pipe Size: 4.5" outside diameter (optimized for 3" pipes).

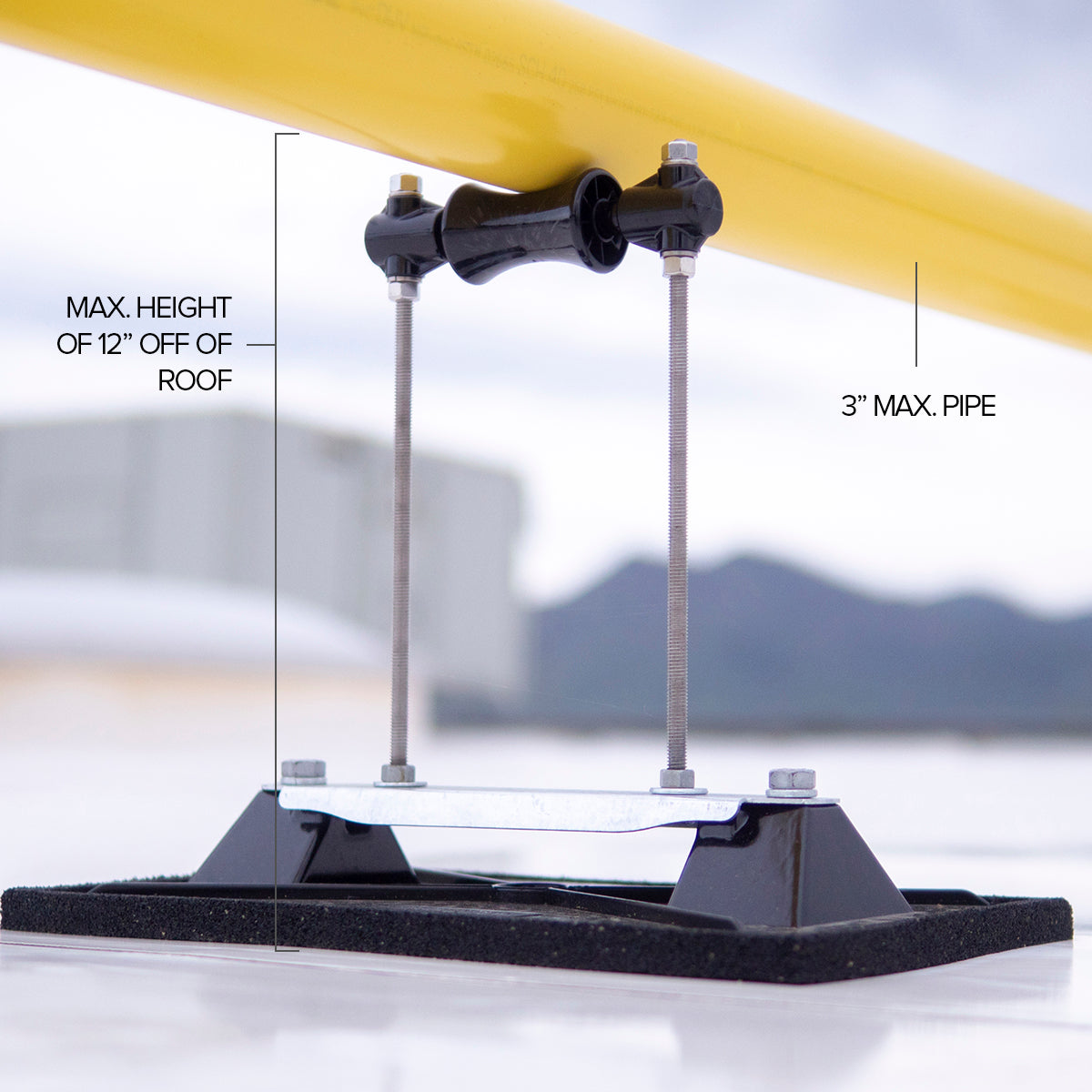

• Height Adjustment: Up to 12" above roof surface.

• Load Capacity: Designed for 3.0 PSI (specific load not specified).

• Warranty: 20-year manufacturer warranty.

Secure your rooftop piping with this durable, USA-made roller-bearing support. Order now for long-lasting performance!
