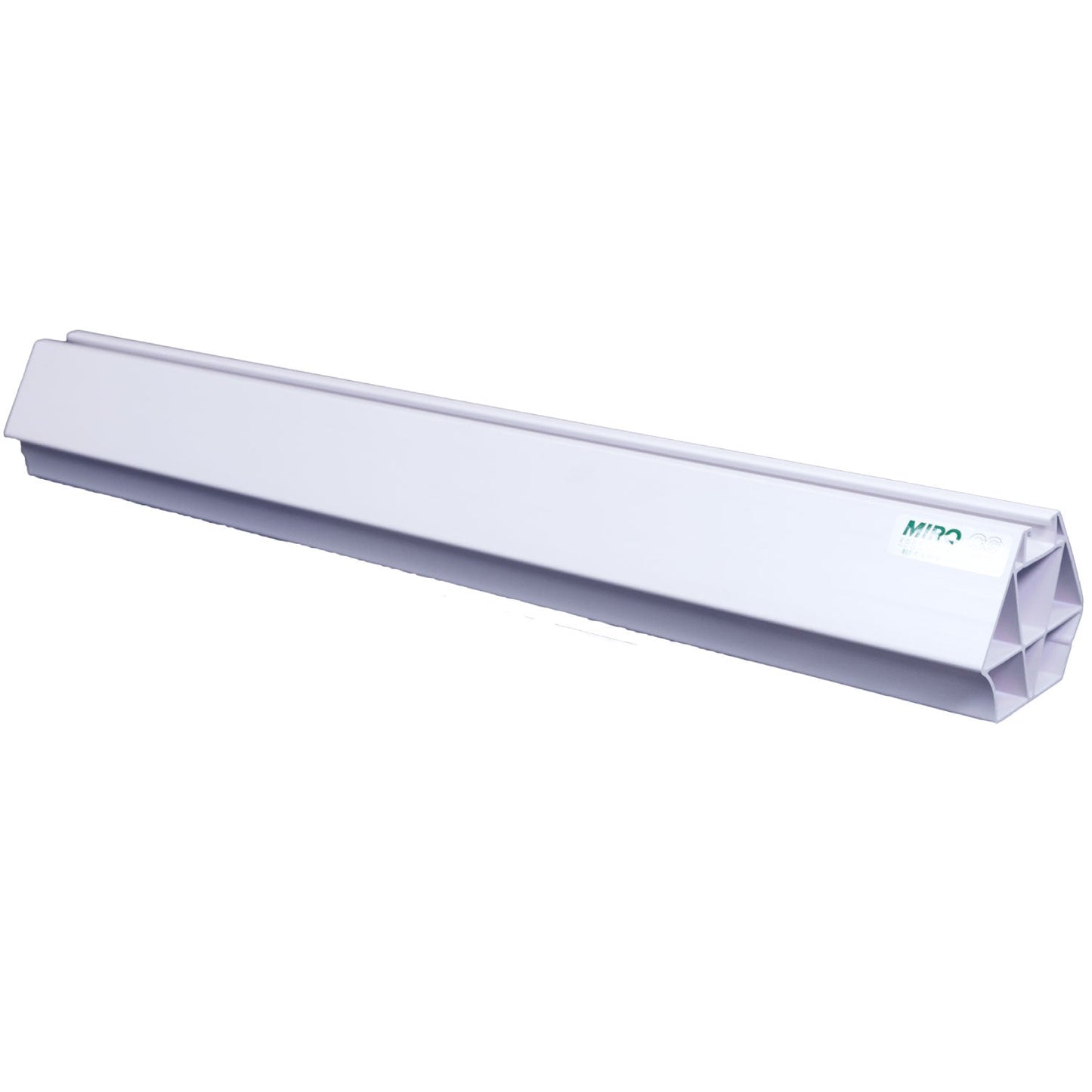

MIRO-CG 36" M-Hex Rooftop Pipe Support with Strut (Case of 4)

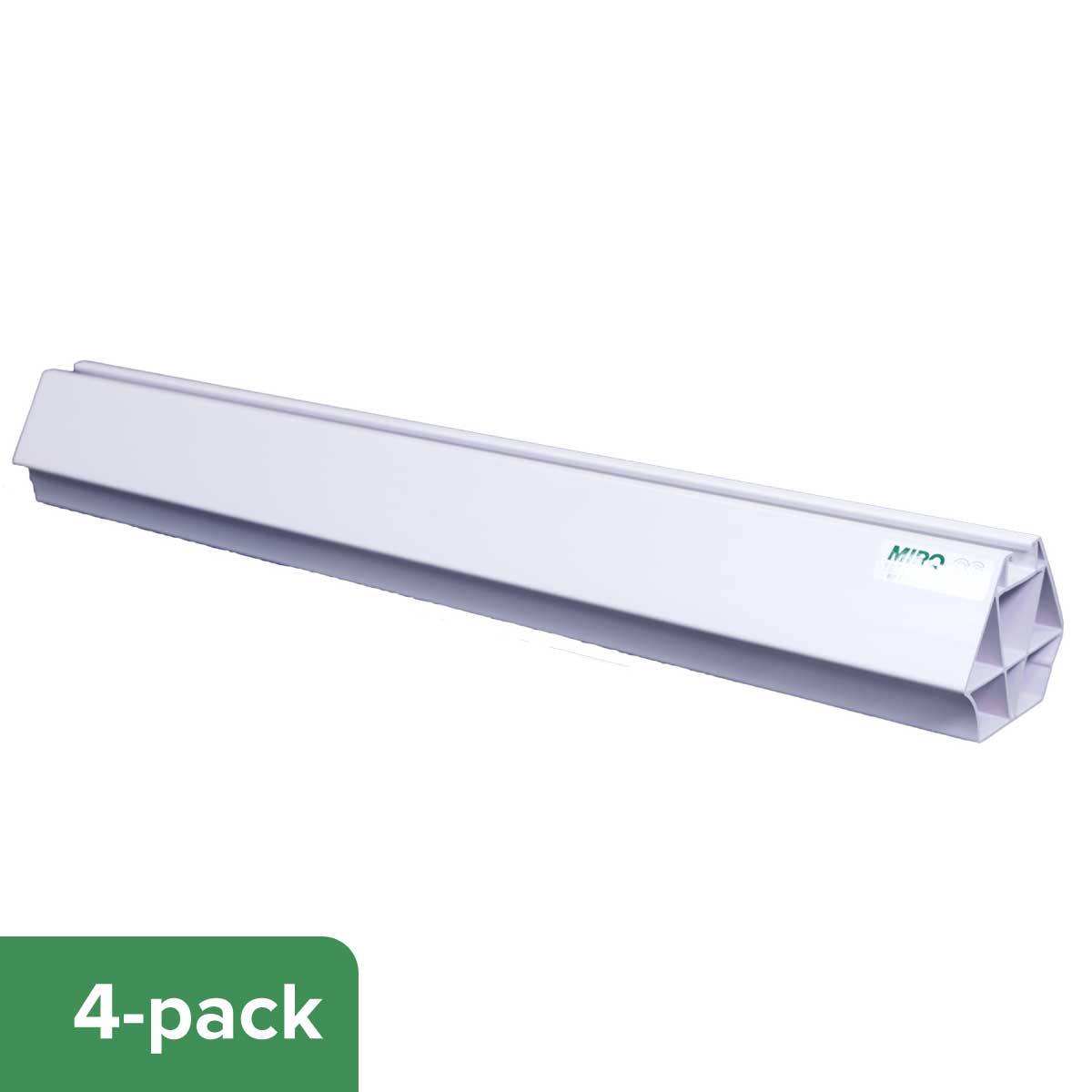

Case of (4) 36" sleeves

Advanced Design for Multiple Applications

The M-Hex rooftop pipe support is engineered to provide superior support for a wide range of rooftop piping and conduit systems. Its innovative design offers unparalleled versatility with three distinct usage options:

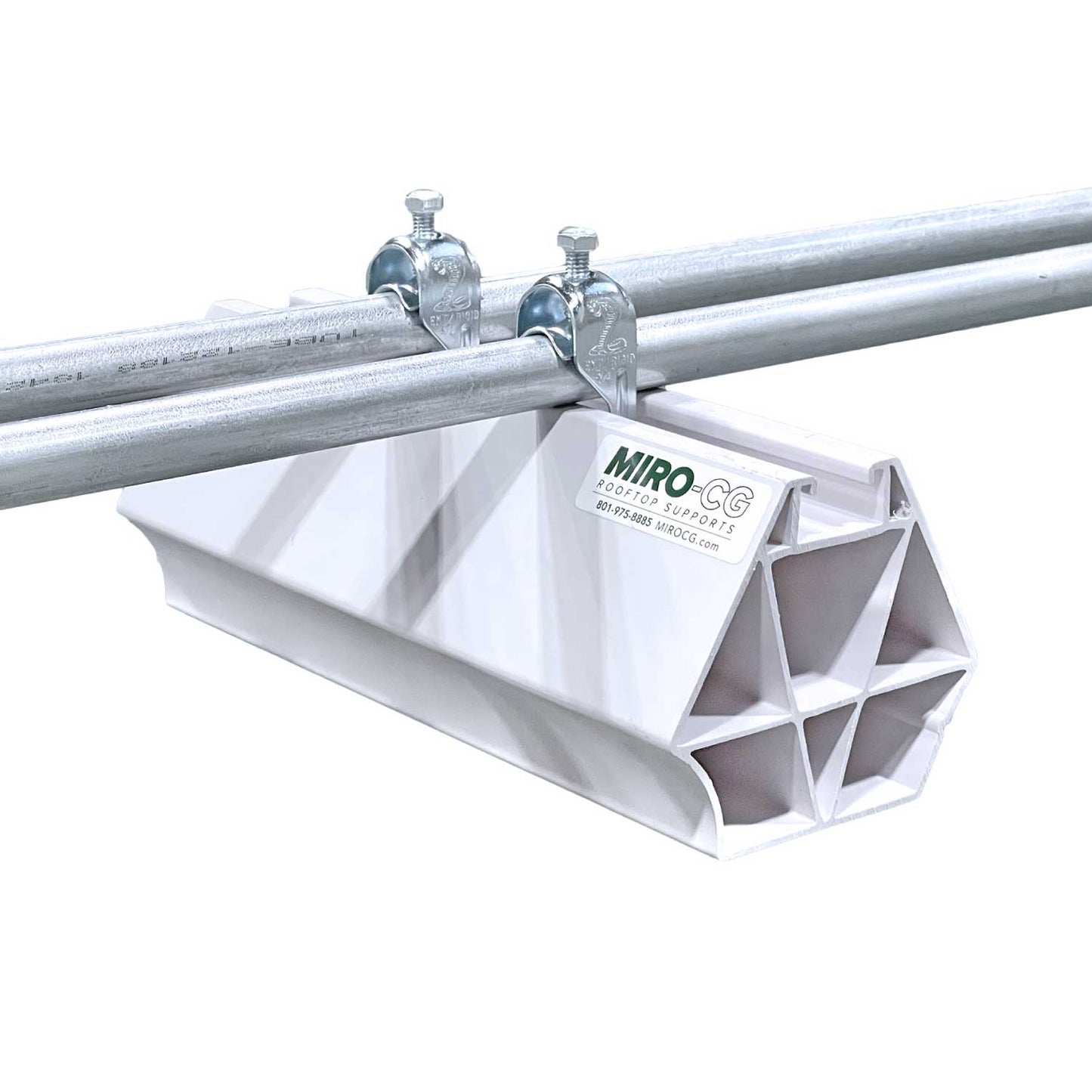

1. Strut Side: Ideal for attaching clamps and fittings for conduit and various other applications.

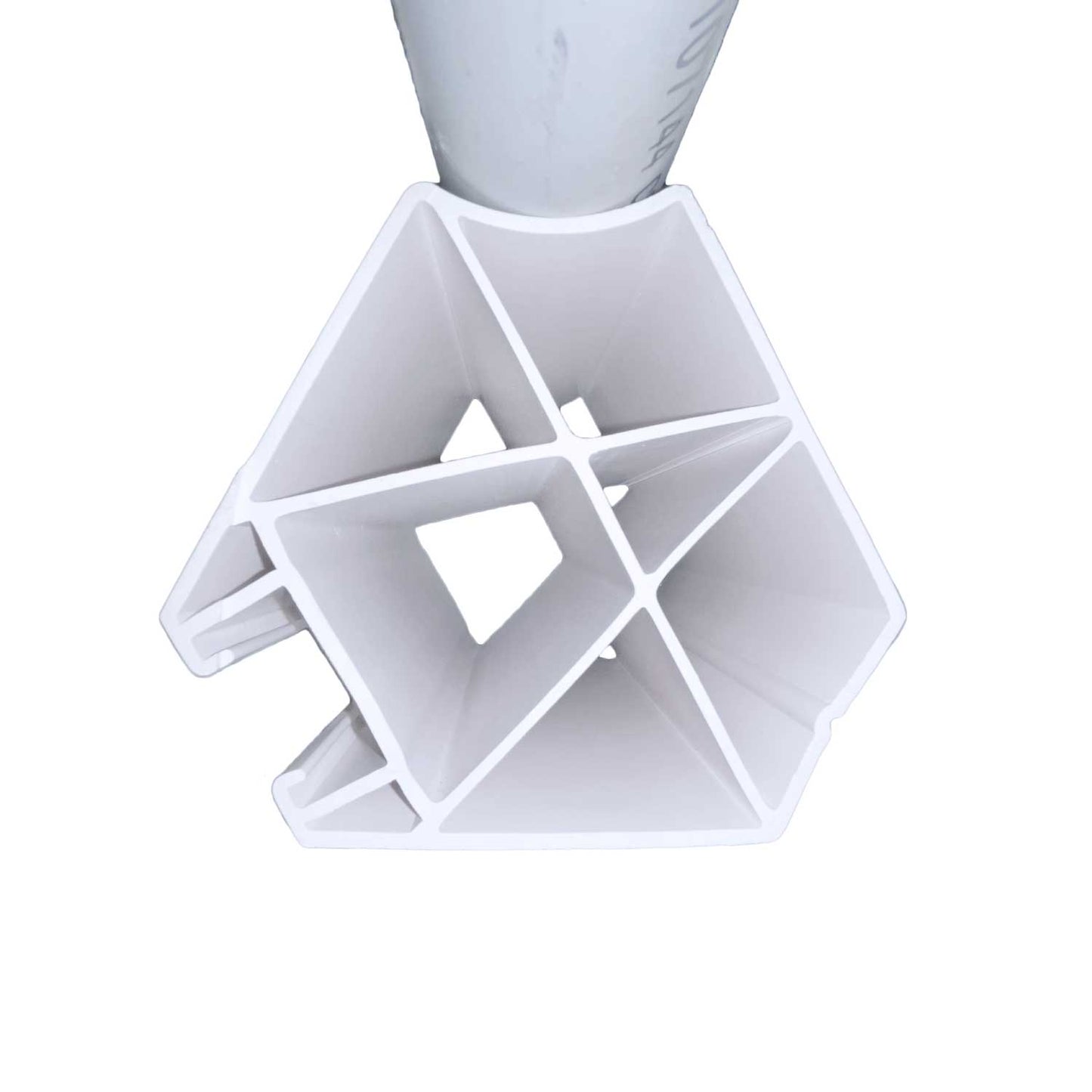

2. Pipe Seat Side: Accommodates pipes up to 3" in diameter, allowing direct placement on the pipe saddle.
3. Drill Side: Enables attachment of additional accessories for customized setups.

Cutting-Edge Material Composition

The M-Hex is crafted from a state-of-the-art blend of materials, combining the best properties of multiple compounds:

• Base Material: PVC (Polyvinyl Chloride)
• Enhancement: 3% CPE (Chlorinated Polyethylene)

This carefully formulated mixture results in a product that offers:

• Improved impact resistance
• Outstanding performance in low-temperature environments
• Excellent weather resistance
• Enhanced chemical resistance
• Superior heat tolerance
• Increased UV light protection
• Flame retardant properties

Benefits of CPE-Enhanced PVC

The addition of Chlorinated Polyethylene as a modifier to the semi-rigid PVC base brings several key advantages:

• Increased Durability: Better resistance to impacts and physical stress.
• Extended Lifespan: Improved weatherability for long-lasting performance.
• Enhanced Safety: Flame retardant properties for added protection.
• Versatile Usage: Maintains flexibility and functionality across a wide temperature range.
• UV Resistance: Protects against degradation from prolonged sun exposure.

The M-Hex rooftop pipe support combines innovative design with advanced materials science to deliver a product that stands up to the challenges of rooftop environments. Whether you're working on HVAC systems, electrical conduits, or plumbing installations, the M-Hex provides the versatility, durability, and reliability you need for successful rooftop infrastructure projects.

MATERIAL: PVC (Polyvinyl Chloride) with 3% CPE (Chlorinated Polyethylene) for improved impact resistance, outstanding low-temperature performance, and excellent weather resistance.

Chlorinated Polyethylene is known for its high resistance to chemicals, heat, and UV light.  It is also flame retardant.  It is used as a modifier for semi-rigid PVC to improve low temperature properties and increase weatherability.

SIZE: 4.5” H, 5.2” W, 36" L | Can be cut to desired length.

SUGGESTED ROOFTOP LOADING:  36”: 351 lbs at 3 PSI applied to surface. Max product load = 800 lbs.

SPACING: Supports should not exceed 10’ on center.

WARRANTY: 2 year manufacturer's limited warranty.
