8-Base Strut-5 (8-BS-5) Rooftop Strut Support for Conduit and other piping

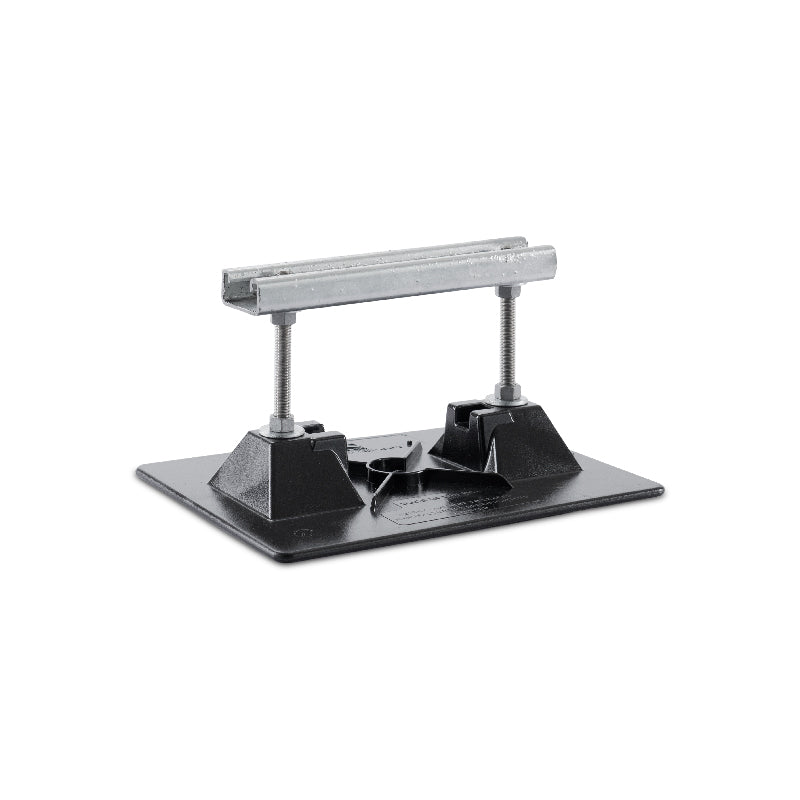

MIRO Strut Pipe Support

The MIRO strut pipe support is engineered for rooftop electrical conduits, solar piping, gas pipes, and mechanical piping, safeguarding roof membranes with a thermal expansion-friendly design.

Key Features:

• Thermal Protection: Absorbs pipe expansion and contraction to prevent roof membrane damage.

• Durable Strut System: 8" hot-dip galvanized steel strut provides robust pipe support.

• Resilient Materials: UV-resistant polycarbonate base with hot-dip galvanized/stainless steel parts for corrosion resistance.

• Adjustable Height: Customizable from 3.5" to 5.375" for versatile installation.

Specifications:

• Material: Polycarbonate base, hot-dip galvanized steel strut, stainless steel/galvanized metal parts.

• Max Pipe Size: 2.5" inside diameter, 3" outside diameter.

• Strut Length: 8".

• Max Load: 172 lbs at 3.0 PSI.

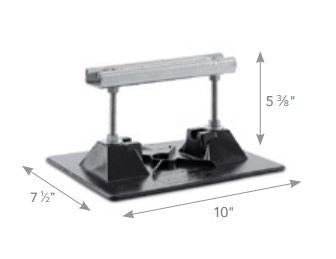

• Height Adjustment: 3.5" to 5.375" above roof surface.

• Spacing: Max 10 ft centers, based on load.

• Warranty: 2-year limited manufacturer warranty.

Ensure reliable rooftop pipe support with the MIRO strut system. Order now for durable, flexible solutions!
