8-Base Strut-8 (8-BS-8) Rooftop Strut Support for Conduit and other piping

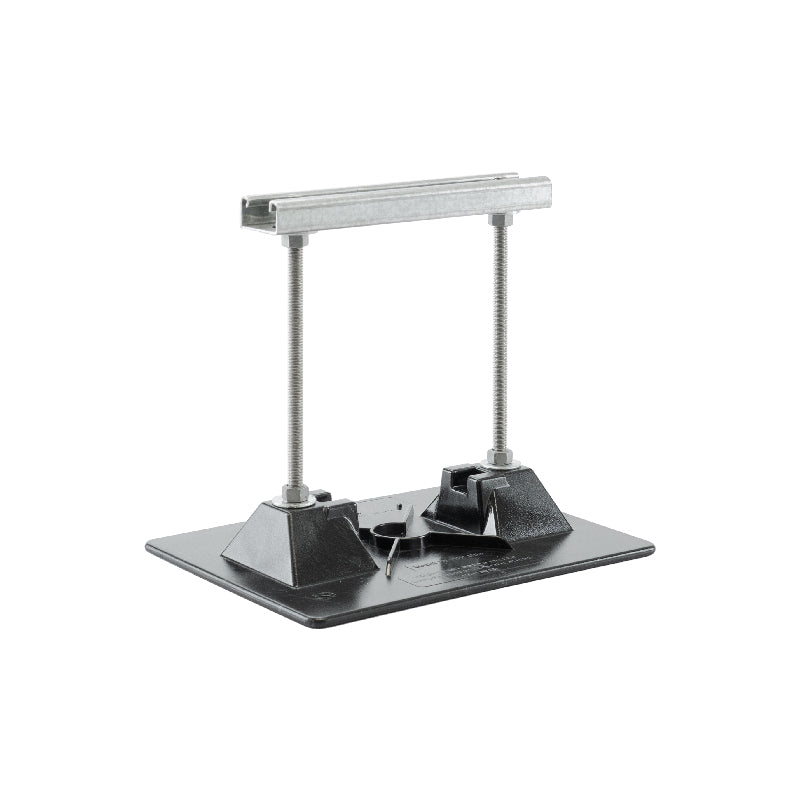

MIRO 8-BS-8 Strut Pipe Support

The MIRO 8-BS-8 strut pipe support is designed for rooftop electrical conduits, solar piping, gas pipes, and mechanical piping, protecting roof membranes with a thermal expansion-friendly design.

Key Features:

• Thermal Protection: Absorbs pipe expansion and contraction to prevent roof membrane damage.

• Robust Strut System: 8" hot-dip galvanized steel strut ensures durable pipe support.

• Durable Materials: UV-resistant polycarbonate base and hot-dip galvanized/stainless steel metal parts for corrosion resistance.

• Adjustable Design: Height adjustable from 3.5" to 8.875" for flexible installation.

Specifications:

• Material: Polycarbonate base, hot-dip galvanized steel strut, stainless steel/galvanized metal parts.

• Max Pipe Size: 2.5" inside diameter, 3" outside diameter.

• Strut Length: 8".

• Max Load: 172 lbs at 3.0 PSI.

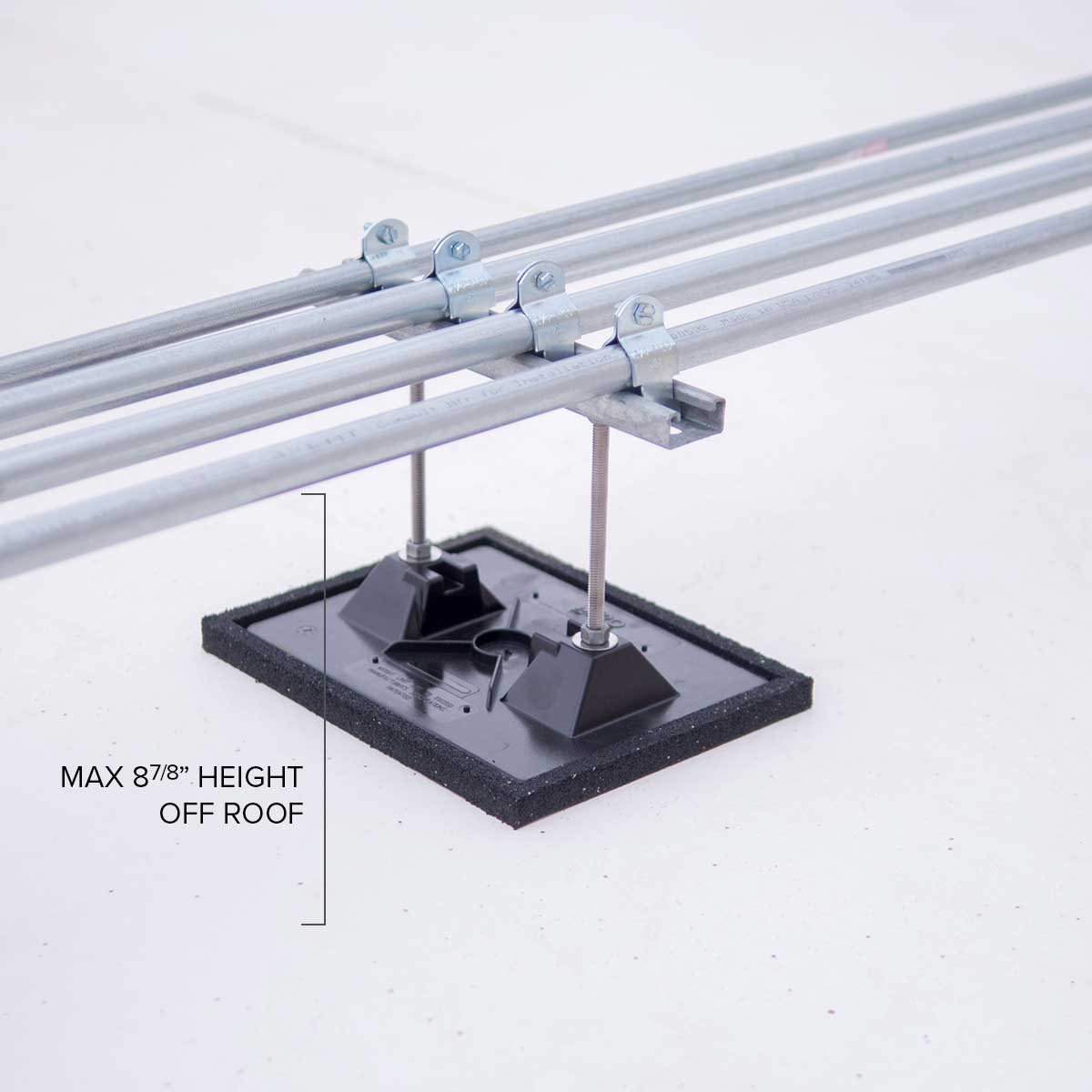

• Height Adjustment: 3.5" to 8.875" above roof surface.

• Spacing: Max 10 ft centers, based on load.

• Warranty: 2-year limited manufacturer warranty.

Secure your rooftop piping with the MIRO 8-BS-8. Order now for durable, adjustable support!
