8-DSA Rooftop Duct Support

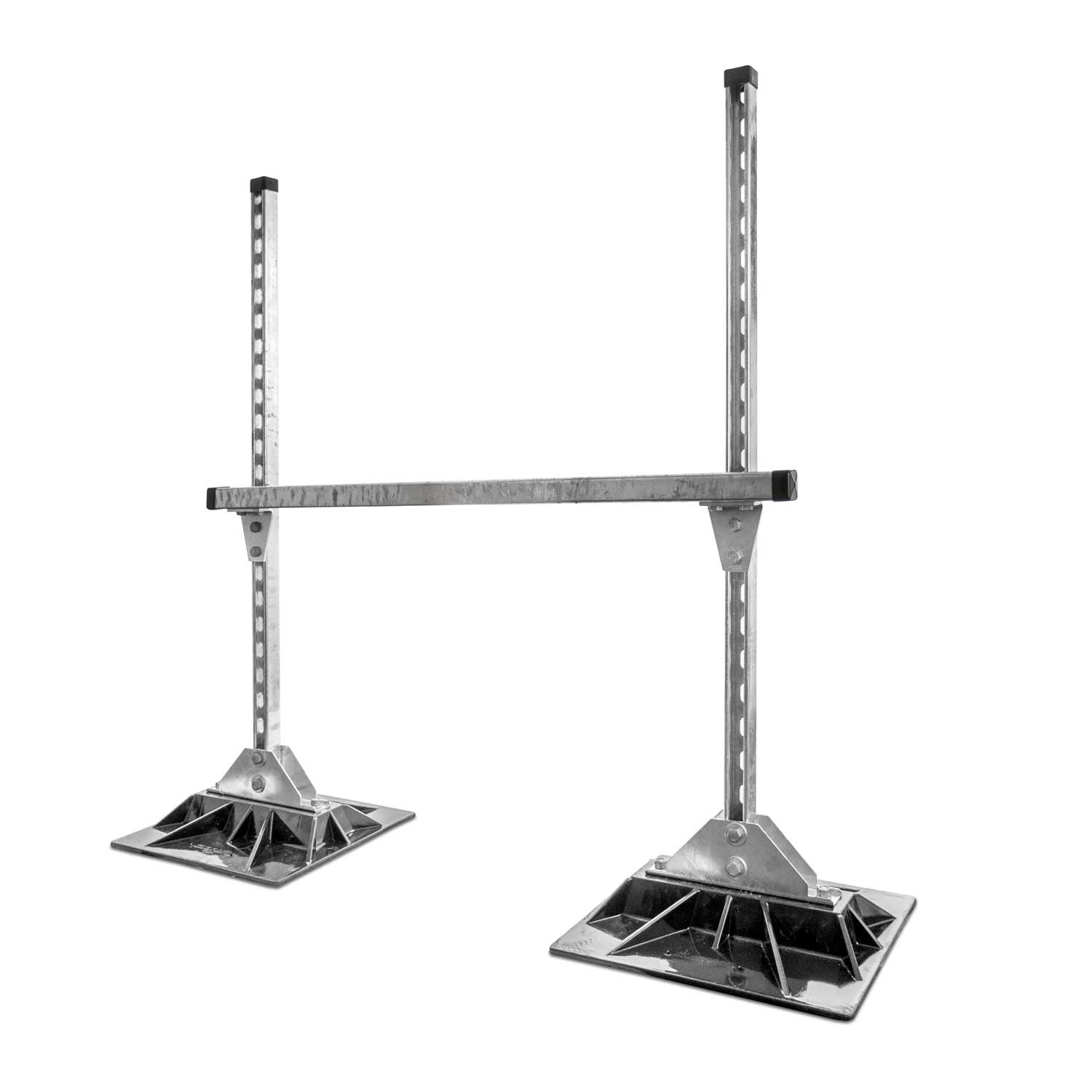

MIRO 8-DSA Duct Support Frame

The MIRO 8-DSA duct support frame provides a sturdy, non-penetrating solution for supporting ducts and utilities on flat roofs, ensuring maximum adjustability and roof membrane protection.

Key Features:

• Non-Penetrating Design: Supports ducts without damaging roof membranes.

• Adjustable Strut: 12-gauge 1-5/8" x 1-5/8" slotted strut allows flexible length and height adjustments.

• Durable Materials: UV-resistant polycarbonate base with galvanized metal parts for corrosion resistance.

• Versatile Applications: Ideal for ductwork and various rooftop utilities.

Specifications:

• Material: Polycarbonate base, 12-gauge galvanized slotted strut.

• Load Capacity: Up to 308 lbs/ft (uniform) or 462 lbs (concentrated) at 18" span; see load table for details.

• Spacing: Max 8 ft centers.

• Accessories: Recommended 16x18 rubber support pad, cross bracing.

• Warranty: 2-year limited warranty.

• Shipping: 1-2 extra days for orders of 10+ units.

Support your rooftop ducts with the reliable MIRO 8-DSA frame. Order now for a durable, adjustable solution!

8-DSA Load Table
