MIRO-CG Mini Mount Mini-Split Support

Overview

The Mini Mount Mini-Split Support by MIRO-CG is an innovative solution for elevating mini split condenser units and other mechanical equipment. Designed for versatility, it performs efficiently on both rooftops and ground-level installations.

Key Features

• Versatile Installation: Suitable for above-grade or rooftop placement
• Protective Design: 8x8 polycarbonate bases safeguard roof membranes and adapt to various surface types
• UV-Resistant: Polycarbonate bases enhanced with carbon black for durability against sun exposure
• Robust Frame: Constructed with 1/4" A366 Steel, hot-dip galvanized for longevity

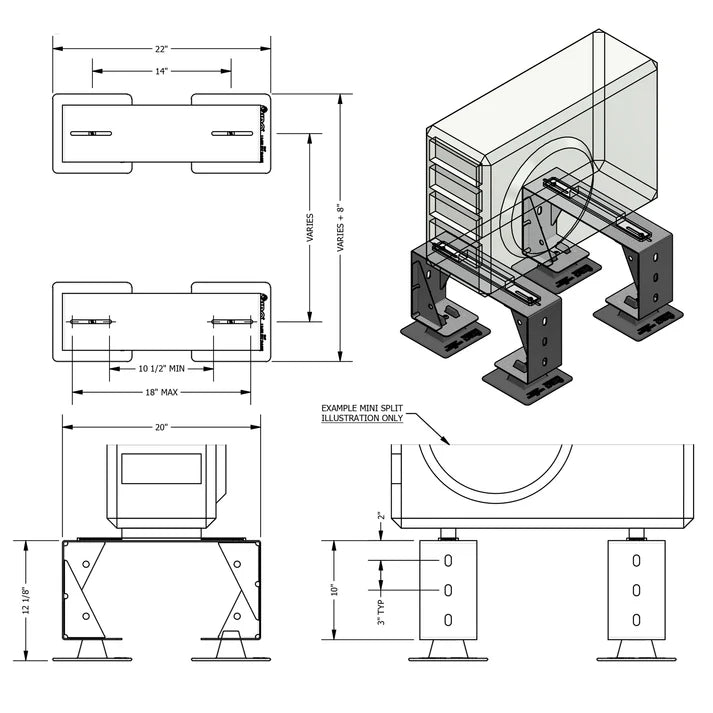

Specifications

• Frame Dimensions: Accommodates widths from 10-1/2" to 18"
• Maximum Length: Frame-to-frame dimension should not exceed 48"
• Height:
  • 12-1/8" with polycarbonate bases
  • 10" when mounted directly on frame
• Load Capacity: Optimized for 3.0 PSI to roof membrane (approximately 300 lbs with four bases)
• Weight: 30 lbs per two frames (including bases)

Warranty

Backed by a 2-year limited warranty for your peace of mind.
