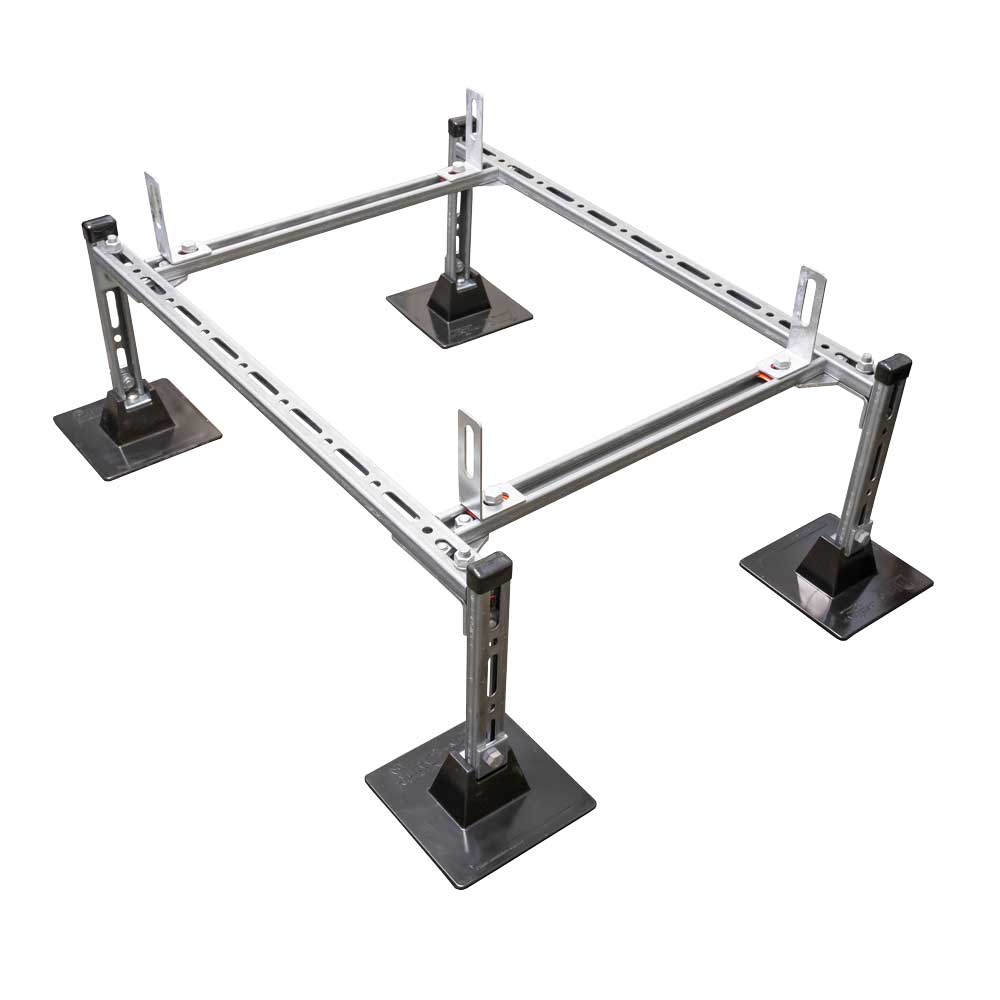

MIRO-CG Mini Split Rail Support: Versatile Solution for Rooftop HVAC Installations

Economical and Adaptable Support for Mini-Split Condensers and Heat Pumps

The MIRO-CG Mini Split Rail Support offers a cost-effective and flexible solution for supporting mini-split condensers and heat pumps on roofs or any suitable surface. Engineered for easy installation and full adjustability, this system accommodates a wide range of unit sizes and installation requirements.

Key Features:

1. Comprehensive Kit:
   • Complete set of parts and hardware for mini split stand

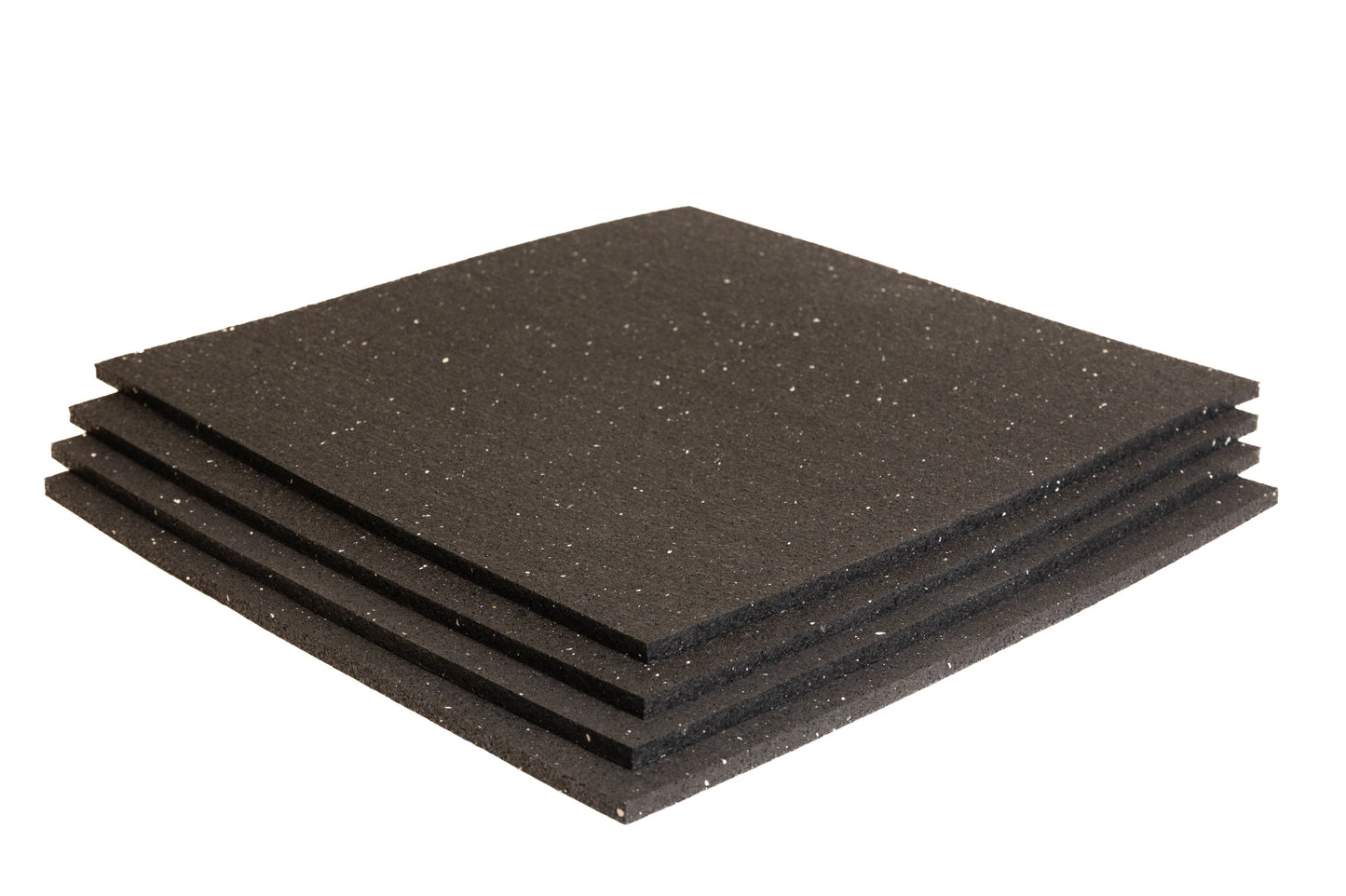

   • (4) 12x12" rubber support pads for base protection
2. Versatile Design:
   • Adjustable height, width, and span to fit various mini-split units
   • Suitable for rooftop installations or any appropriate surface
3. Durable Construction:
   • Frame: 14 gauge Hilti Channel (7/8" x 1-5/8") with zinc-magnesium finish for outdoor durability
   • Base: Polycarbonate with carbon black for enhanced UV resistance
   • Hardware and brackets: Hot-dip galvanized or electro-galvanized for corrosion protection
4. Optimized Load Distribution:
   • Designed for 3.0 PSI roof loading
   • Approximate load capacity of 300 LBS (ultimate load capacity not tested)
5. Customizable Safety Features:
   • Primarily designed for gravity loading
   • Additional wind and/or seismic tie-downs available upon request
   • Engineering services offered for specialized installations

Benefits:

• Cost-Effective: Economical solution for HVAC installations
• Easy Installation: Designed for quick and straightforward setup
• Flexible Application: Adapts to various mini-split unit sizes and installation scenarios
• Roof Protection: Rubber support pads and optimized load distribution safeguard roof integrity
• Weather-Resistant: Built with materials that withstand outdoor conditions
• Expandable Safety: Options for additional tie-downs to meet specific environmental needs

The MIRO-CG Mini Split Rail Support system combines affordability with adaptability, offering an ideal solution for your mini-split condenser and heat pump installations. Whether you're a contractor seeking an efficient support system or a property owner looking for a reliable, cost-effective solution, the MIRO-CG delivers exceptional performance and value.

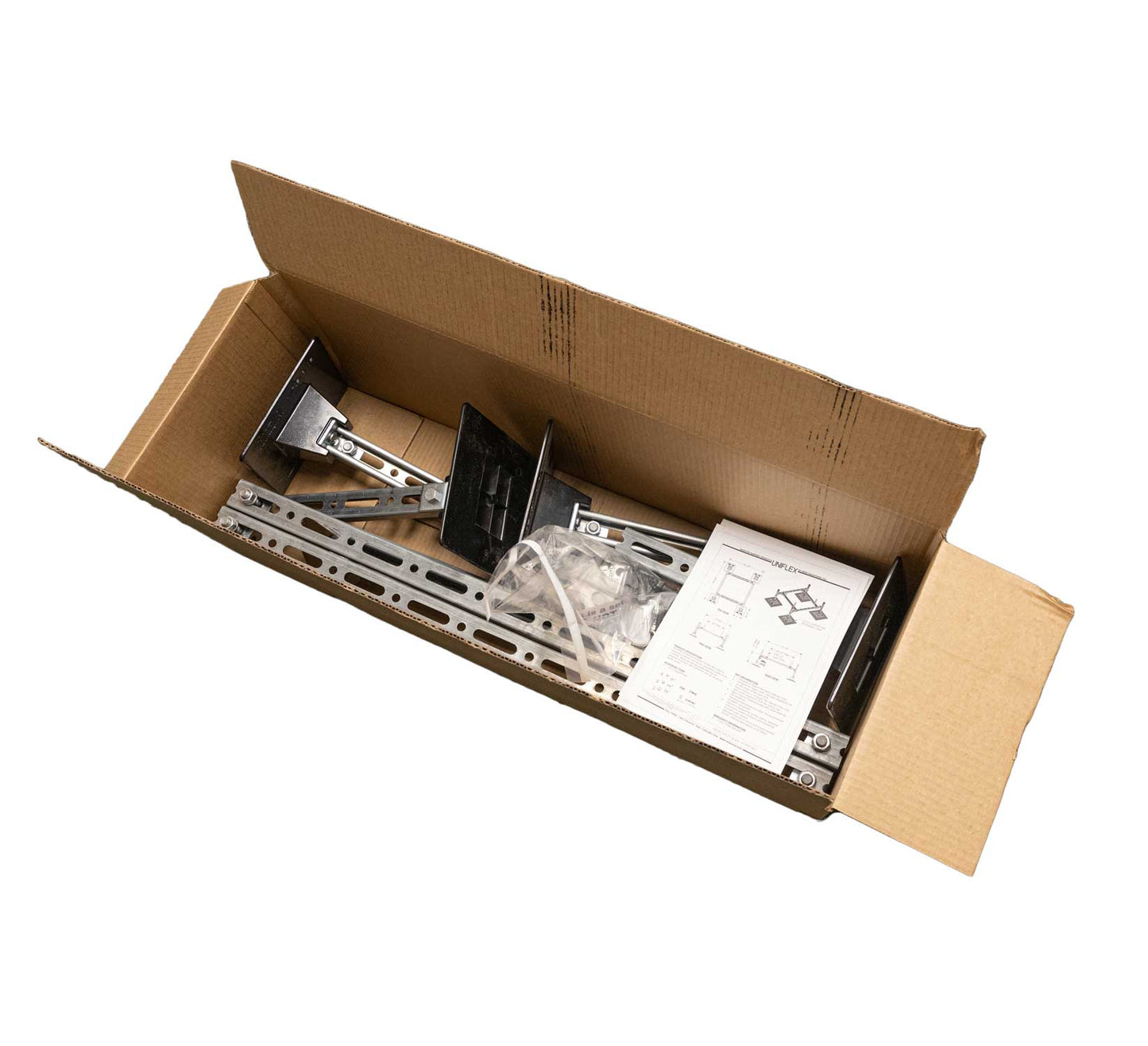

INCLUDES: Parts and hardware for mini split stand and (4) 12x12" rubber support pads to place underneath bases.

KEY INFORMATION

• Designed to support Mini-Split condenser units.
• Designed for height, width, and span adjustability for a wide range of Mini-Split Units.
• Frame material is 14 gauge Hilti Channel (7/8×1-5/8) with a zinc-magnesium finish for outdoor use.
• The base material is polycarbonate with carbon black for UV resistance.
• Hardware and brackets are either hot-dip galvanized or electro-galvanized
• Support is designed for gravity loading. Additional wind and/or seismic tie-downs and engineering are provided upon request.
• The optimized load of 3.0 PSI to the roof is approximately 300 LBS. Ultimate load capacity is not tested.

WARRANTY INFORMATION

2 year limited warranty

SHIPPING

This product may take an extra day or two to process, especially when ordering 10 or more.
