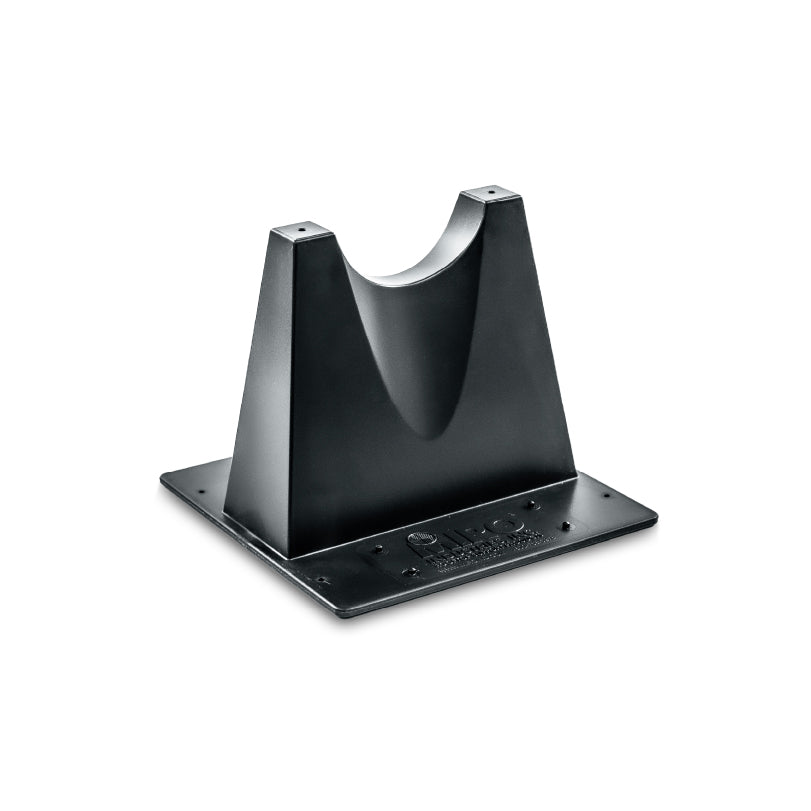

Model 3.0

The Model 3.0 supports roof-mounted gas pipes, electrical conduit, solar piping, and other mechanical piping. Pipes rest in a ‘U’ shaped cradle situated in a polycarbonate resin seat. Each Model 3.0 stand will accommodate up to 3" inside diameter pipes. The maximum outside diameter of the pipe that can be cradled in the Model 3.0 support is 3.5". Compatible with the 3-R spacer for extra height, as well as pipe guides and our 12" x 12" support pad.

Base Material

Polycarbonate

Size

The deck base is 7.75" square, the stacking platform is 5" high, and the maximum inside width of the cradle is 3.5"

Max Pipe Size

3" inside diameter and 3.5" outside diameter.

Max Pipe Clearance

Pipes supported one pipe stand high will have a clearance of 5" over the roof

Max Load Weight

 Maximum load weight may not exceed 120 lbs. per pipe stand

Spacing

The manufacturer's recommended spacing is not to exceed 10' centers depending upon the load.
